NVIDIA CMP 170HX Pro Mining 164MH/s 205W

In Stock


✔ The NVIDIA CMP 170HX is powered by a single 8-pin PCI-E connector to supplement its 250W TDP (mines at 205W average in reality)
✔ The card couples a dual-slot design with an elegant aluminum shroud and features a passive-cooling heatsink solution that requires an external fan (3,000 rpm or shroud directed). Immersion cooling will void warranty.
✔ Easy installation, durable build and stable mining performance in Windows, Linux and hiveOS.
✔ Unleashed and unlocked maximum hashrate for Ethereum, Ethereum Classic, Ravencoin, Ergo, Callisto, Metaverse & more.
✔ Exclusive Vipera 6 month replacement warranty from date of delivery.

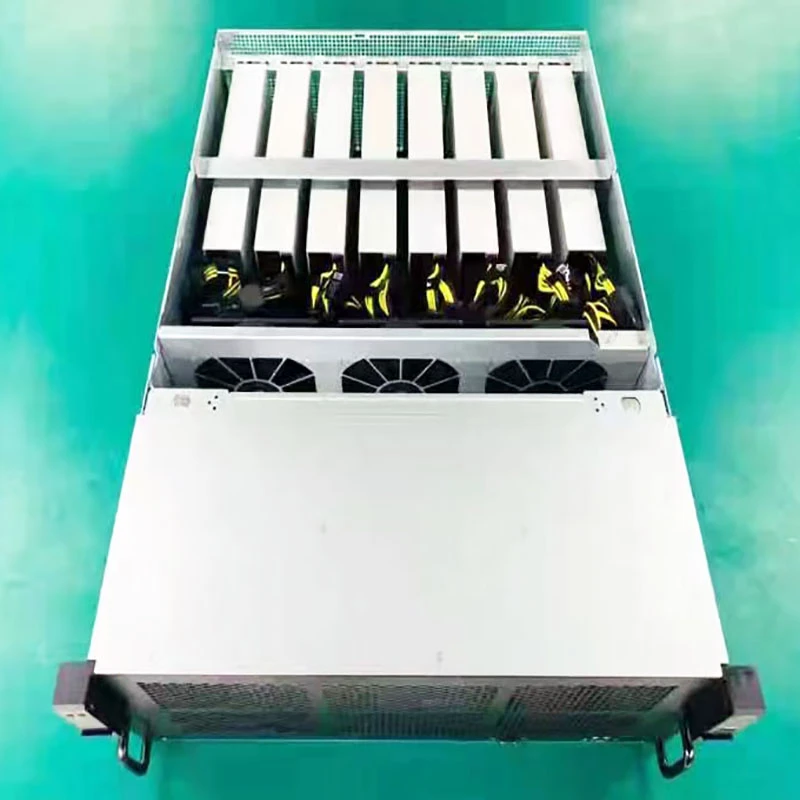

All sales final, there are no cancellations or refunds. For bulk inquiries, please consult a live chat agent or call our toll-free number. Pre-built plug-and-play or deconstructed kit mining rigs– the Exeton Phenom N6 CMP or N7 CMP models– can also be purchased. Please fill out an inquiry form or speak to a live chat agent for more information. For Windows drivers, navigate to our Support > Downloads page under Mining GPUs. The card works best in Linux and HiveOS, but can also be used in Windows with the proper drivers installed.

  • img

    Nvidia’s Exclusive Crypto-Focused Card

    Made for Miners

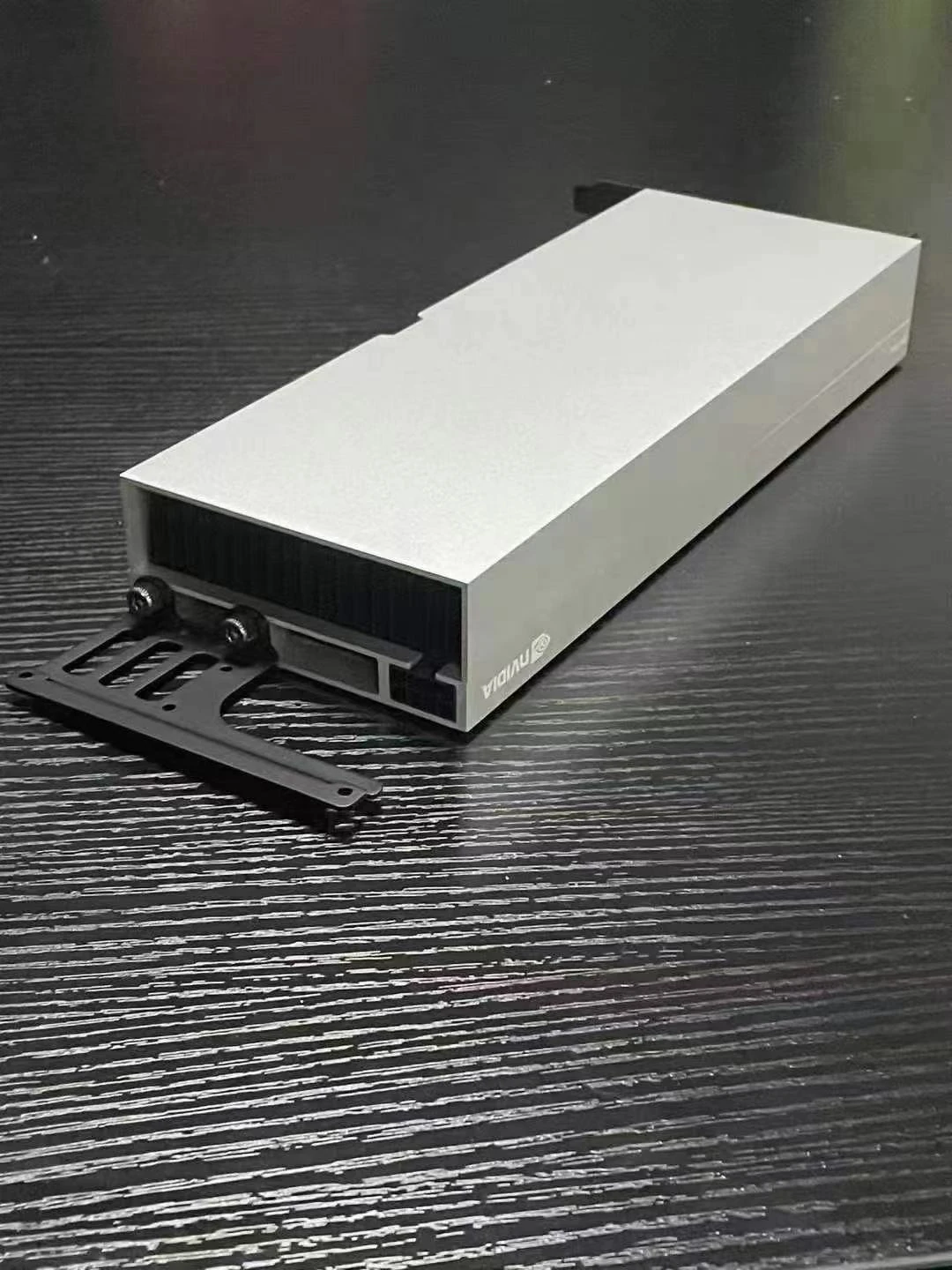

    NVIDIA’s fastest CMP 170HX mining card has been released and is now ready for global shipping. These models come directly from Nvidia factory and feature a cut-down GA100 die with 4480 CUDA cores complemented by 8 GB of HBM2e VRAM. The CMP line is very energy efficient versus its gaming counterparts. This device has no display connectivity, as it is not designed to have monitors connected to it. CMP 170HX is connected to the rest of the system using a PCI-Express 4.0 x4 interface.

  • img

    Little Package, Big Bite

    The CMP 170HX is a professional graphics card by NVIDIA, launched on September 1st, 2021. Built on the 7 nm process, and based on the GA100 graphics processor, in its GA100-100-A1 variant, the card does not support DirectX. The GA100 graphics processor is a large chip with a die area of 826 mm² and 54,200 million transistors. Unlike the fully unlocked A100 PCIe, which uses the same GPU but has all 6912 shaders enabled, NVIDIA has disabled some shading units on the CMP 170HX to reach the product’s target shader count. It features 4480 shading units, 280 texture mapping units, and 128 ROPs. Also included are 280 tensor cores which help improve the speed of machine learning applications. NVIDIA has paired 8 GB HBM2e memory with the CMP 170HX, which are connected using a 4096-bit memory interface. The GPU is operating at a frequency of 1140 MHz, which can be boosted up to 1410 MHz, memory is running at 1458 MHz.

    The VBIOS is LOCKED, and cannot be tweaked by programs such as MSI Afterburner.
